Single Point Load Cells of Lorenz Messtechnik GmbH

Single point load cells are normally used for platforms with only one load cell and small nominal load. They are angulary load-compensated, so even if the platform is stressed at just one angle, the measurement result will be optimal.
Typical applications are for example retail scales, vending scales, dynamic scales (bulk goods), industrial bench scales and floor scales or mobile weighing systems.

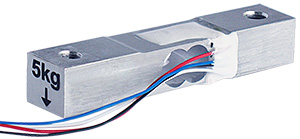

BEF-F

Type: BEF-F
Measuring Range: 3..5 kg
Approval: -
Description: Single Point Load Cell
For Platforms up to 150mm x 150mm
Low Cost Load Cell
Flat Designed (12 mm)
PDF Datasheet: 080927_W-BEF-F_en.pdf
PDF Operation Manual: -
CAD Files: -
