Rotating Torque Sensors with Slip Rings

By default, rotating torque transducers with slip rings sent an analog, unamplified strain gauge bridge output signal in mV/V, which is transmitted via high-quality, low-wear slip rings. Slip ring sensors are generally used for individual, random inspections or torque measurements, performed at low speed. An integrated speed/angle measurement is standardized in most torque sensors with slip ring transmission. Typical applications for this type of sensor are for example screw driving tech­nolo­gies, test bench applications such as testing of engines, gears, bearings and seals ... .

DR-1

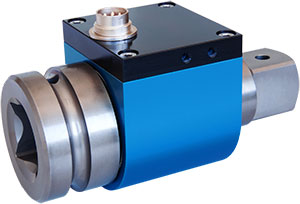

Type: DR-1
Measuring Range: 1..5000 N·m
Accuracy Class: 0.1
Mechanical Connection: Male Square Drive / Female Square Drive
Speed/Angle Measurement: -
Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 6-pin female cable connector and free soldered ends
Connection cable, 3 m, with 6-pin female angle cable connector and free soldered ends

PDF Datasheet: 080875a_dr-1_en.pdf
PDF Operation Manual: Download
CAD Files: DXF
IGS; STP
