News

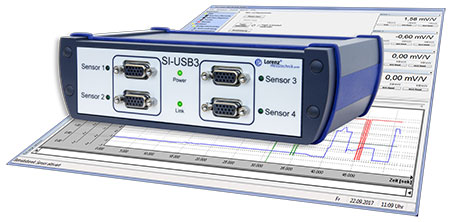

4 Channel USB-Sensor Interface SI-USB3 with Configuration and Evaluation Software VS3
Fast Measurement
of up to 5000/s- Full Synchronism of all Measuring Channels
- Up to 16bit Resolution
- Input Signal for mV, V, and mA
- Input Ranges for Linear Potentiometer and Temperature Probe PT100
- Input Ranges combinable with each other
- Adjustment and Control Signal Activation via Software
- Convenient Configuration- and Evaluation Software VS3 included in the Scope of Delivery
- Free LabVIEW- and DLL-Drivers enable Integration in own Software

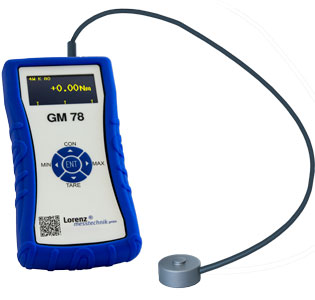

Mobile SG-display unit GM 78
Hand-held measuring device with freely scalable OLED display- Display of physical unit and rated value mV/V
- Memory for up to four sensors
- 4- and 6- wire measurement
- USB-C plug-in power supply with battery charging function
- Integrated peak picker and signal inversion function
VOLTAGE RATIO mV/V
- We offer proprietary calibrations of voltage ratio mV/V for strain gauge measuring amplifiers or display devices (AC / DC voltage) in accordance with DIN EN 10012.
Torque Sensor DR-2554 – Compact, Accurate, Dynamic
Short Embodiment-length with Integrated Coupling- Bearing-free
- Active Output (±5V, ±10V)
- Integrated Speed Measurement (Option)
- Contactless, Digital Signal Transmission
See also our Publication for DR-2554
DR-4000 Torque Sensor
with Digital and Analog Interfaces
2x digital interfaces: USB and RS485- RS485 or frequency output
- 2x analog outputs, current or voltage option
- 2 x open-collector outputs with <100 V and <1 A
- Accuracy class: 0.1, optionally 0.05
- Optional as a dual-range sensor, range ratio 1:5 or 1:10
- Up to 2,500 measurements/s per channel.
Up to 5,000 measurements/s in single-channel operation
- 100% control signal or TEDS
- Includes configuration and evaluation software
Further Development: LCV‑USB3 Sensor Interface with new Configuration and Evaluation Software VS3
Easy applicable "Plug and Play" Measuring System- Supply of the Measuring System via PC USB Port
- Up to 16bit Resolution
- Input Signal for mV, V and mA
- Fast Measurement up to 5000/s
- Calibration and Control Trigger via Software
- Connection possibility in many commercially available Sensors e.g. Force, Torque, Displacement or Pressure Sensors
- Comfortable Configuration and Evaluation Software inclusive
Torque Measuring Flange DR-2800
Active Output ±5V (±10V)- Contactless Data Transmission
- Maintenance-free, since no Bearings
- Very short axial Length
- High Torsional Stiffness
- Flange-Flange-Solution
- Rotor-sided Through Hole
- Integrated Speed Measurement (Option)
