Products of Lorenz Messtechnik GmbH

Our manufacturing program includes torque sensors, force sensors, load cells as well as the corre­sponding measured data evaluation units. Furthermore customized system solutions and test benches for the acquisition of speed, torque, force and characteristics; special sensors and strain gauge installation. We offer DAkkS and proprietary calibrations for all of our sensors and devices. With the purchase of a new sensor a test certificate, which records the traceable measurement, is provided as standard.

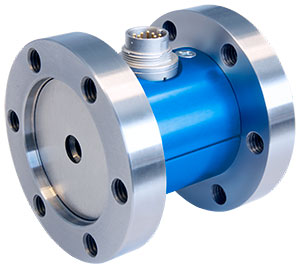

Type: M-2396
Measuring Range: 0.5 kN / 5 N·m
0.5 kN / 50 N·m
1 kN / 10 N·m
1 kN / 30 N·m
20 kN / 20 N·m
2 kN / 50 N·m
Accuracy Class: 0.3 (F)
0.2 (Mt)
Range of Application: E.g. Optimization of the Cutting Force of Drills
Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 12-pin female cable connector and free soldered ends

PDF Datasheet: 080979_M-2396_en.pdf
PDF Operation Manual: -
CAD Files: DXF
