Rotating Torque Sensors with Slip Rings

By default, rotating torque transducers with slip rings sent an analog, unamplified strain gauge bridge output signal in mV/V, which is transmitted via high-quality, low-wear slip rings. Slip ring sensors are generally used for individual, random inspections or torque measurements, performed at low speed. An integrated speed/angle measurement is standardized in most torque sensors with slip ring transmission. Typical applications for this type of sensor are for example screw driving tech­nolo­gies, test bench applications such as testing of engines, gears, bearings and seals ... .

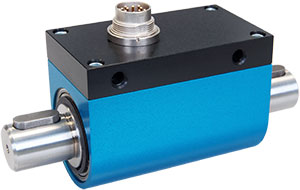

Type: DR-20
Measuring Range: 1..500 N·m
Accuracy Class: 0.1
Mechanical Connection: Cylindrical Shaft with Keyway
Speed/Angle Measurement: ✓ Standard
Suitable Coupling (PDF Datasheet): 1..20 N·m
50..500 N·m
Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 12-pin female cable connector and free soldered ends
Connection cable, 3 m, with 12-pin female angle cable connector and free soldered ends

PDF Datasheet: 080865a_DR-20_en.pdf
PDF Operation Manual: Download
CAD Files: DXF
