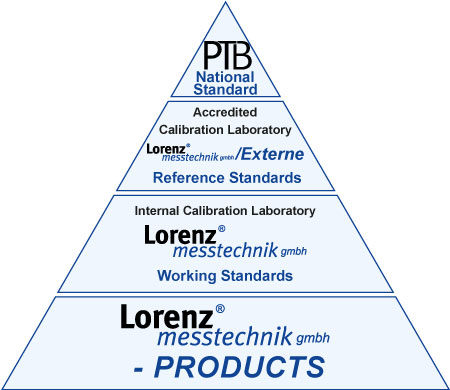

Traceability of our Products to National Standards
Traceability of our Products to National Standards

DAkkS Calibration

DAkkS calibrations are executed with reference sensors which are regularly recalibrated by the Physikalisch-Technische Bundesanstalt (PTB) or a DAkkS laboratory. They can be performed by a DAkkS-accredited calibration lab­ora­tory in accordance with obligatory standards and guidelines. In the national calibration hierarchy, a DAkkS calibration laboratory is classified right after the PTB. The DAkkS regularly monitors all DAkkS laboratories. Hence, DAkkS calibration certificates confirm traceability to national standards without ob­ject­ions.

For measured variables and measurement ranges beyond our accredited range we offer solutions within our network of accredited laboratories.



Torque

Calibration of Torque Sensors or Torque Mea­sur­ing Chains (Sensor and Measuring Amplifier)


Torque Calibration System for Proprietary Calibrations
Torque Calibration System for Proprietary Calibrations



DAkkS Torque Calibration System
DAkkS Torque Calibration System

Laboratory, accredited by
the DAkkS according to
DIN EN ISO/IEC 17025.
The accreditation is valid only
for the scope listed in the
annex of the accreditation
certificate D-K-17603-01-00.

Force

Calibration of Force Sensors or Force Measure­ment Chains (Sensor and Measuring Amplifier)

  • Compressive Force: 2 N … 5000 kN
    Proprietary Calibration acc. DIN EN ISO 376 and DAkkS-DKD-R 3-3
  • Tension Force: 2 N … 1000 kN
    Proprietary Calibration acc. DIN EN ISO 376 and DAkkS-DKD-R 3-3

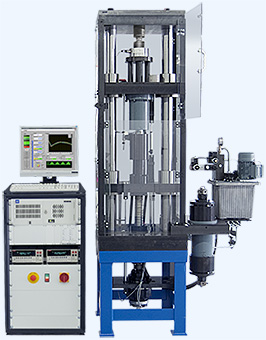

Force Calibration System for Proprietary Calibrations
Force Calibration System for Proprietary Calibrations







Voltage Ratio mV/V

We offer proprietary calibrations of voltage ratio mV/V for strain gauge measuring amplifiers or display devices (AC / DC voltage) in accordance with DIN EN 10012.

Proprietary Calibrations of Voltage Ratio mV/V
Proprietary Calibrations of Voltage Ratio mV/V


Rotation Angle

Proprietary calibrations for rotation angles on torque sensors according to VDI/VDE 2648-1 in the measuring range from 0 to 3600 pulses per revolution and a resolution of 0.025°.

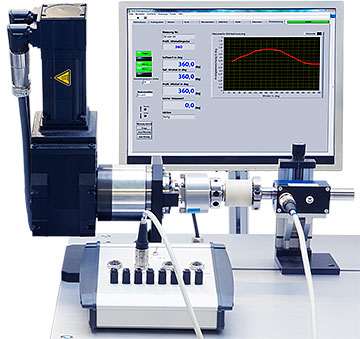

Proprietary calibrations for rotation angles on torque sensors
Calibration for Rotation Angle

Please address the Calibration/Repair Return form to:

Lorenz Messtechnik GmbH
Dept. Service
Obere Schlossstrasse 131
73553 Alfdorf
Germany
